LC LED RLT-350RGB: IP68 RGB SMD LED Lamp

HIGHLIGHTS

APPLICATIONS

        3.5mm x 3.5mm IP68 RGB SMD LED

        IP68 Waterproof for Outdoor Lighting Products

        Sun Light Viewable

        Long Operating Life

        RoHS Compliant Part

        Outdoor Message Boards and Signage

        LED Landscape Lighting

        Outdoor LED Stripe Lights

        Safety and Automotive Lighting

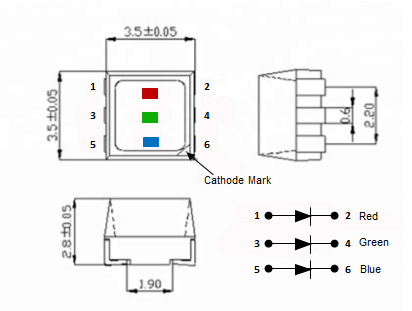

DEVICE DIMENSIONS

A close up of a device

Description automatically generated





Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

GREEN

BLUE

UNITS

DC Forward Current

20

20

20

mA

Peak Pulse Forward Current (1)

100

100

100

mA

Reverse Voltage (IR = 10mA)

5

5

5

VR

Electro-Static Discharge (ESD)

2000 (HBM)

V

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

(1) Pulse conditions of 1/10 duty and 0.1msec width





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

DC Forward Voltage (Red)

VF

IF = 20mA

1.8

2.2

V

DC Forward Voltage (Green)

VF

IF = 20mA

3.0

3.3

V

DC Forward Voltage (Blue)

VF

IF = 20mA

3.0

3.3

V

Luminous Intensity (Red)

IV

IF = 20mA

1,000



1,500

mcd

Luminous Intensity (Green)

IV

IF = 20mA

1,800



2,500

mcd

Luminous Intensity (Blue)

IV

IF = 20mA

700



1,000

mcd

Viewing Angle

2q1/2

IF = 20mA

120

Deg.

Dominant Wavelength (Red)

lD

IF = 20mA

620

630

nm

Dominant Wavelength (Green)

lD

IF = 20mA

520

530

nm

Dominant Wavelength (Blue)

lD

IF = 20mA

460

470

nm

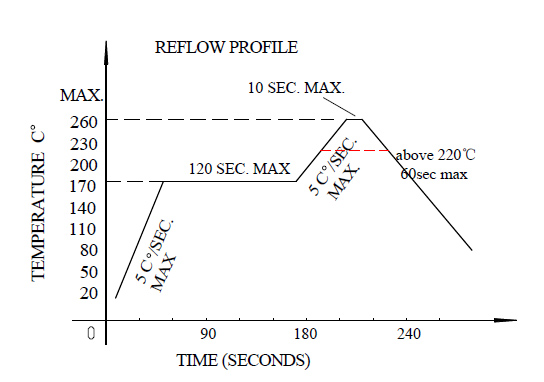

Suggest Solder Reflow



A close up of a map

Description automatically generated

(1) Maximum Manual Soldering Temperature of 2600C No More Than 3 Seconds





Recommended PCB Solder Pad



A close up of a clock

Description automatically generated

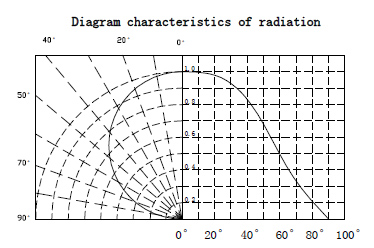

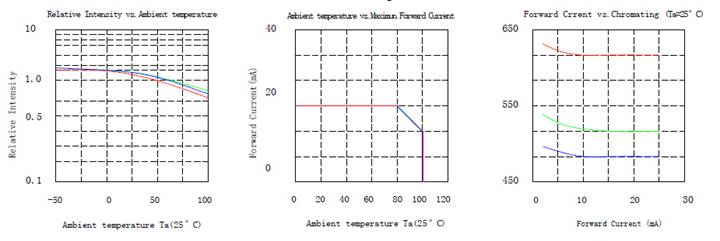

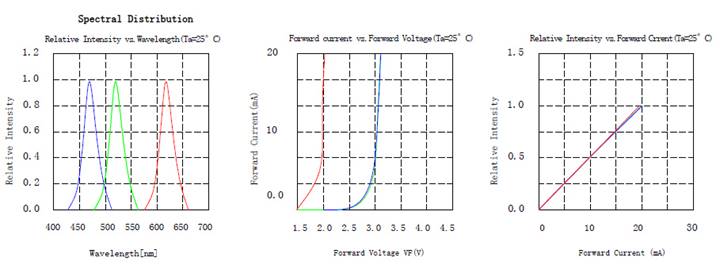

Electro-Optical Curve Characteristics



A close up of a map

Description automatically generated



A close up of a map

Description automatically generated



A close up of a piece of paper

Description automatically generated

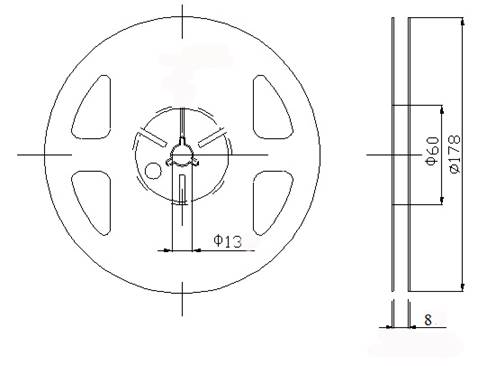

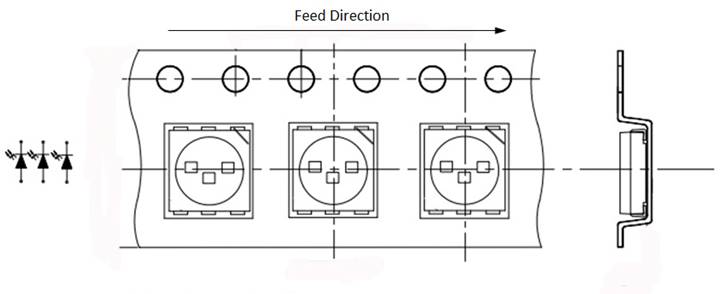

Tape and Reel Package Dimensions



A picture containing text

Description automatically generated



A drawing of a person

Description automatically generated

LC LED Corporation
