Blinking 5mm Green LED Lamp



PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Moisture & UV Resistance Epoxy

(2) Built in Blinking I.C.

(5)  Rugged design suitable for both indoor & outdoor use

(3) Blinking frequency of 1.5 Hz







Electro-optical Characteristics (Ta = 250C)

Part

Color

Viewing

Peak

Forward Voltage

Luminous Intensity

Number



Angle

Wavelength
(nm)

TYP.
(V)

MAX.
(V)

Min.
(mcd)

Max.
(mcd)

B500TB4D

Super Blue

30

470

3.1

3.6

1,800

3,500

B500TG4D

Super Green

30

525

3.1

3.6

1,800

3,000

B500JPF4D

Super Red

30

630

1.8

2.3

3,500

5,700

B500JPT4D

Super Amber

30

590

1.7

2.1

2,800

4,500





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current (Pulse Operation)

30

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

(1)  Pulse conditions of 1/10 duty and 0.1msec width

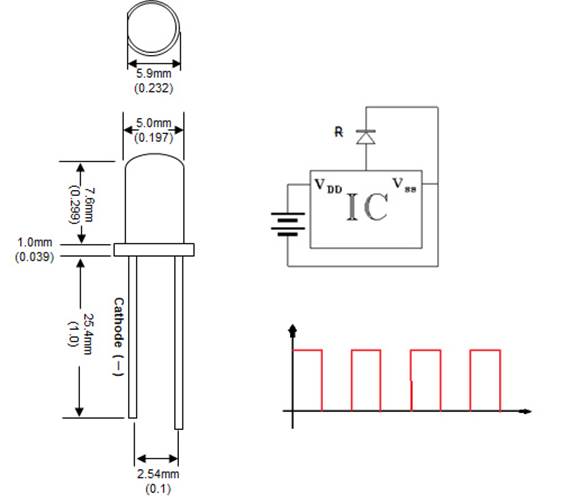

DEVICE DRAWING



















LC LED Corporation
