B500RGB4H: 5mm Color Changing RGB LED Lamp

Quick Flashing Mode 5mm T1 Color Changing LED Lamp (Water Clear)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Moisture & UV Resistance Epoxy Len

(2) Built in I.C. Chip with Tri-Color Red, Green & Blue LED

(5) Sun Light Viewable LED Lamp

(3) Color Changing Mode: R->G->B->RG->GB->RB->RGB at 0.3Hz

(6) Rugged design suitable for both indoor & outdoor use





Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

25

mA

Reverse Voltage (IR = 100mA)

5

V

Peak Pulse Forward Current (1)

100

mA

Derating Linear Value

0.4mA / 0C



Operating & Storage Temperature

-30 to +85

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

(1) Pulse conditions of 1/10 duty and 10msec width





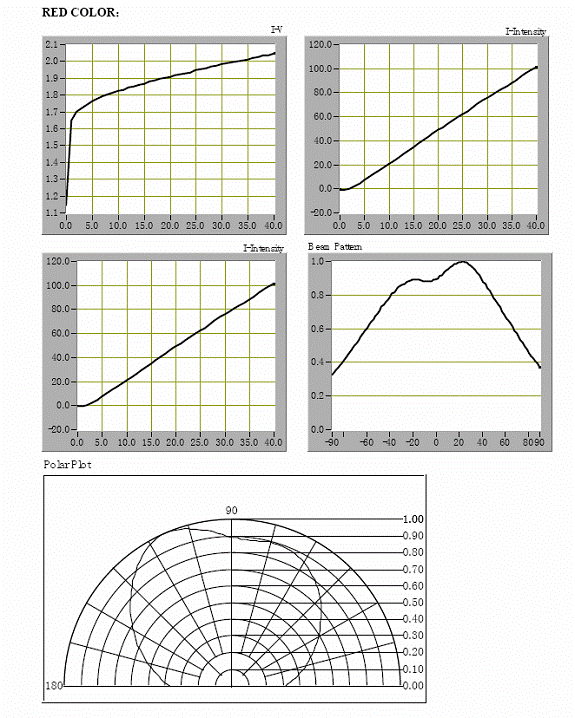

Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage (Red)

VF

IF = 20mA

1.8



2.2

V

Forward Voltage (Green)

VF

IF = 20mA

3.0



3.5

V

Forward Voltage (Blue)

VF

IF = 20mA

3.0



3.5

V

Dominant Wavelength (Red)

lD

IF = 20mA



625



nm

Dominant Wavelength (Green)

lD

IF = 20mA



520



nm

Dominant Wavelength (Blue)

lD

IF = 20mA



465



nm

Viewing Angle

2q1/2

IF = 20mA



40



Deg.

Luminous Intensity (Red)

IV

IF = 20mA

1,500



2,500

mcd

Luminous Intensity (Green)

IV

V

5,000



8,000

mcd

Luminous Intensity (Blue)

IV

IF = 20mA

1,000



2,000

mcd





Operating Characteristics (Ta = 250C)



PARAMETER

SYMBOL



MIN.

TYP.

MAX.

UNIT

Operating Voltage

VDD



3.0

4.5

5.0

V

Driver Current

I

VDS = 1.2V



40



mA

Power Consumption

P

VDD = 4.5V



180



mW

Flash Frequency

F

External + 30%



1.7



Hz









DEVICE DRAWING









RGB Color Mixing Diagram










LC LED Corporation
