B300TG4D: 3mm Blinking Green LED Lamp



        Built in Blinking I.C.

        Blinking frequency of 1.5 Hz





Electro-optical Characteristics (Ta = 250C)



Part

Color

Viewing

Peak

Forward Voltage

Luminous Intensity

Number



Angle

Wavelength
(nm)

TYP.
(V)

MAX.
(V)

Min.
(mcd)

Max.
(mcd)

B300TB4D

Super Blue

30

470

3.1

3.6

1,600

3,000

B300TG4D

Super Green

30

525

3.1

3.6

2,000

3,500

B300JPF4D

Super Red

30

630

1.8

2.3

1,800

2,500

B300JPT4D

Super Amber

30

590

1.7

2.1

1,800

2,500

B300TW4D

Super White

30

X = 0.29
y = 0.31

3.1

3.6

1,500

3,500







Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current (Pulse Operation)

30

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)



(1) Pulse conditions of 1/10 duty and 10msec width

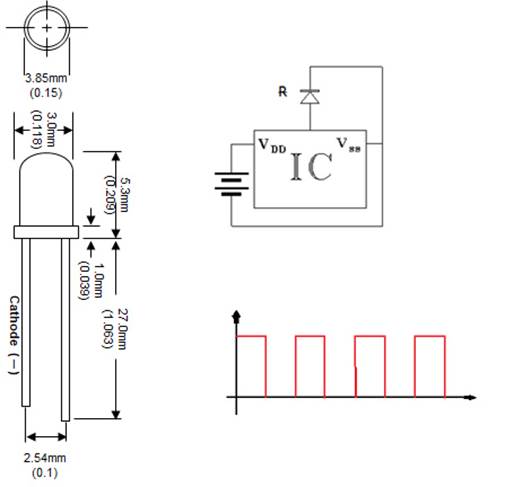

DEVICE DRAWING



























LC LED Corporation
