500TSW4DF Super Bright
White 5mm LED (60 Degree) Lamp
|
PRODUCT DESCRIPTION |
|
|
(1) RoHs Compliant Part |
|
|
(2) Super Bright White LED
Emitter |
|
|
(3) Moisture & UV Resistance
Epoxy |
|
|
(4) Bin Sorted By Color,
Intensity & Vf |
|
Absolute Maximum Rating (Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Reverse Voltage (IR = 100mA) |
5 |
V |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current (Pulse Operation) |
30 |
mA |
|
Operating Temperature |
-30 to
+85 |
0C |
|
Storage Temperature |
-40 to
+100 |
0C |
(1) Pulse conditions of 1/10 duty and 0.1msec
width
Electro-optical Characteristics (Ta
= 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward Voltage |
VF |
IF = 20mA |
|
3.6 |
3.8 |
V |
|
Reverse Voltage |
VR |
IR = 100mA |
|
|
5 |
V |
|
Dominant Wavelength |
lD |
IF = 20mA |
|
X = 0.31 |
|
|
|
Viewing Angle |
2q1/2 |
IF = 20mA |
|
60 |
|
Deg. |
|
Luminous Intensity |
IV |
IF = 20mA |
|
2,500 |
|
mcd |
COLOR / INTENSITY BIN
|
Bin |
|
|
|
Intensity Bin Code |
||
|
1 |
900 |
1,300 |
|
2 |
1,300 |
1,800 |
|
3 |
1,800 |
3,000 |
|
Color Bin Code |
||
|
A |
3300K |
|
|
B |
5500K |
|
|
C |
8000K |
|

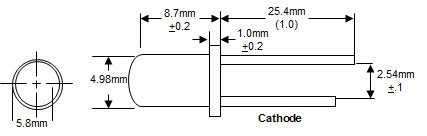

DEVICE DRAWING
|
LC LED Corporation |
