300TB4D Super Blue LED
Lamp (30 Degree)
|
Solder Dipping |
Soldering |
|
(1) Pre-Heat: 1000C
Max. |
(1) 30W Max. Soldering Iron |
|
(2) Pre-Heat Time: 60 seconds |
(2) Soldering Temperature: 3000C
Max. |
|
(3) Solder Temperature: 2600C
Max |
(3) Soldering Time: 3 seconds Max. |
|
(4) Dipping Time: 5 Sec. Max. & No closer than 3mm from
bulb |
(4) No closer than 3mm from base
of bulb |
Absolute Maximum Rating (Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Reverse Voltage (IR = 10mA) |
5 |
V |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current (Pulse Operation) |
30 |
mA |
|
Operating Temperature |
-30 to
+80 |
0C |
|
Storage Temperature |
-40 to
+100 |
0C |
(1) Pulse conditions of 1/10 duty and 0.1msec
width
Electro-optical Characteristics (Ta
= 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward Voltage |
VF |
IF = 20mA |
|
3.3 |
4.0 |
V |
|
Reverse Voltage |
VR |
IR = 100mA |
|
|
5 |
V |
|
Dominant Wavelength |
lD |
IF = 20mA |
464 |
470 |
473 |
|
|
Viewing Angle |
2q1/2 |
IF = 20mA |
|
30 |
|
Deg. |
|
Luminous Intensity |
IV |
IF = 20mA |
|
3,850 |
|
mcd |
INTENSITY BIN lv (mcd)
|
Bin |
|
|
|
|
|
1 |
2,500 |
3,350 |
|
1 = 2.8V-3.0V |
|
2 |
3,350 |
3,750 |
|
2 = 3.0V-3.2V |
|
3 |
3,750 |
4,000 |
|
3 = 3.2V-3.4V |
|
4 |
4,000 |
4,400 |
|
4 = 3.4V-3.6V |
COLOR BIN CB (x,y)
|
W1 |
460 nm –
465nm |
|
W2 |
465 nm –
470 nm |
|
W3 |
470 nm –
475 nm |
|
W4 |
475 nm –
480 nm |

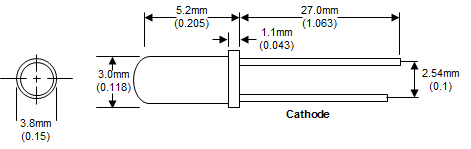

DEVICE DRAWING
|
LC LED Corporation |
